| Key Atributes | Values | Key Atributes | Values |
| Color Temperature | 5000k, 6500k & Cusztomized | Luminous Efficacy | Customized. We can design high luminous efficiency according to request |
| Width/Length | Customized | Warranty | 5 years/3 years customized |
| Brand Name | GUOLI / Customized | Emitting Color | Customized |
| Lens | Available option, need your lens drawing | Water proof | Available option, We have process of applying waterproofing adhesive |
| Radiator | die cast/extruded aluminum | CRI | 80/90 customized |
| Certification | UL(CUL), IS09001&IS014001, IATF16949, REACH, RoHS | PCB surface process | OSP/HASL |
| Copper thickness | 0.5-3oz | PCB material | FR-4/Aluminum |
| Input | AC | Light Source | LED |
| Support Dimmer | Available | Board Thickness | 0.2-4mm |
| DOB Design | NO | Service | One-stop turnkey service |
| LED CHIPS | Brand option:CREE/OSRAM/NICHIA/PHILIPS & others 3030/3535/5050 etc | Colour Accuracy Initially | Min. 3 SDCM |
| Power | Customized | ZHAGA | Available |

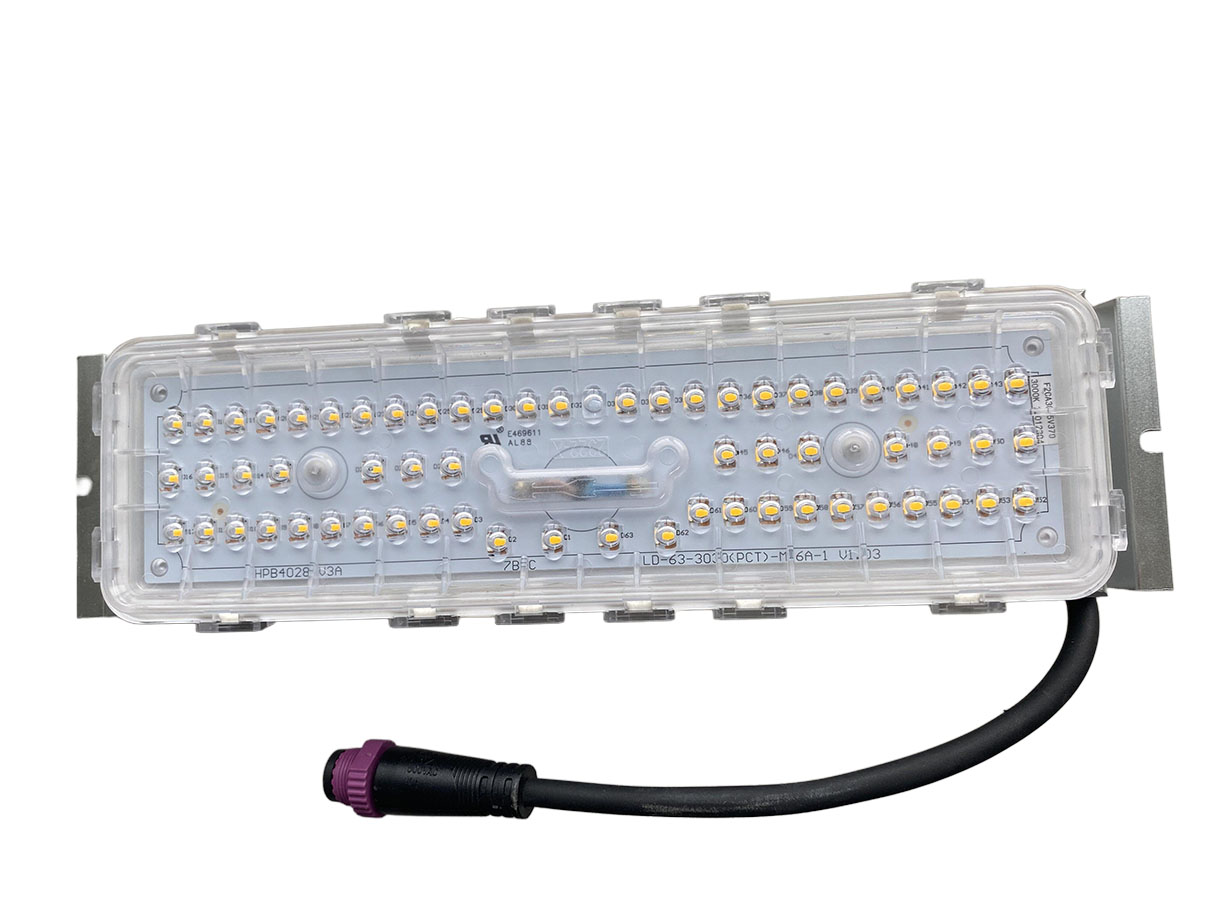

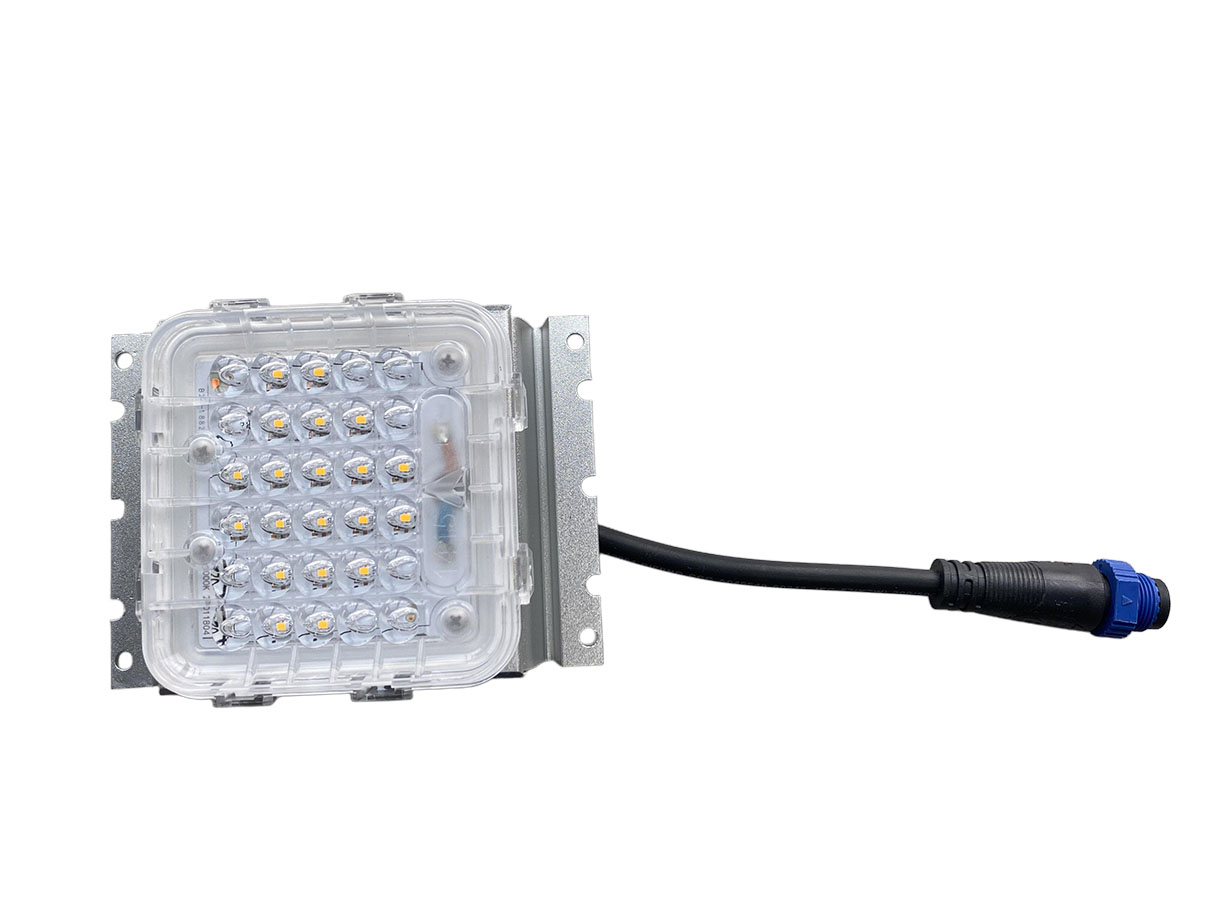

Over 70% of the electrical energy in LED streetlights is converted into heat. The design of the heat dissipation aluminum structure directly determines the module's lifespan and light decay rate. We Guoli can design and manufacture light source modules, assemble lenses, cables and heat dissipation structures for our clients and professional lab for products testing. Furthermore, in the overall design of the module and structural components, we prioritize the client's needs for overall light efficiency, heat dissipation, and lifespan:
Aluminum Profile Selection and Structural Design
Material: 6063-T5 aluminum alloy (customizable), thermal conductivity ≥180W/(m・K), balancing thermal conductivity and structural strength;

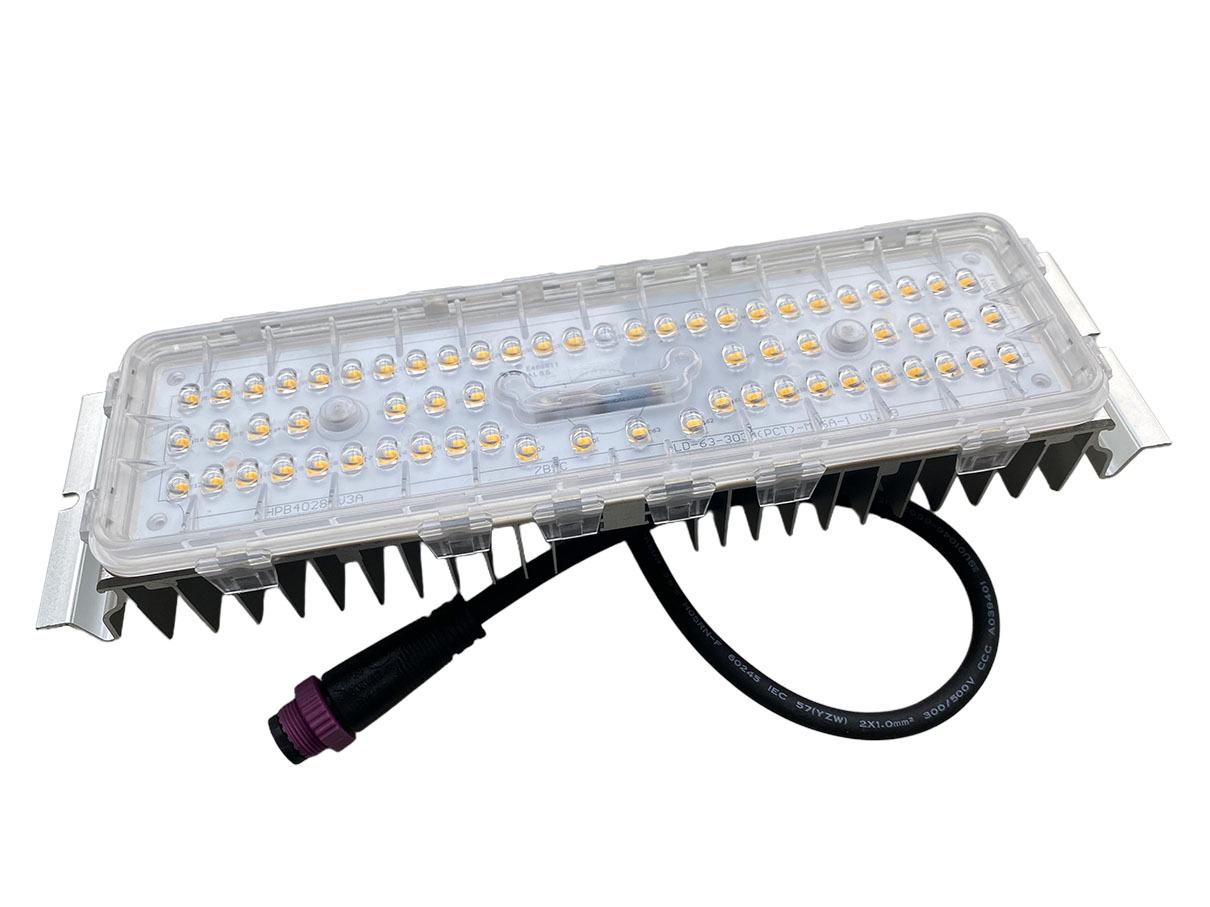

Structure: Utilizing a finned heat dissipation structure to increase the heat dissipation area (heat dissipation area must be ≥0.01m²/W, i.e., 100W). Module heat dissipation area ≥ 1m²; fin spacing ≥ 8mm to avoid hot air stagnation;
Module bonding with aluminum structural components: Thermally conductive silicone pads (thermal conductivity ≥ 2.0W/(m・K)) or thermal grease must be used to fill the gaps at the contact surface and eliminate the air insulation layer; high-power modules can be bolted to ensure uniform bonding pressure.
Optimized heat conduction path: Ensure an unobstructed heat conduction path of "LED → PCB substrate → heat-conducting medium → aluminum structural components → air";
Avoid interference from wires, screws, and other foreign objects between the PCB substrate and aluminum structural components; if necessary, design positioning posts for precise module fixation.
Outdoor weather resistance treatment: The surface of the aluminum structural components must be anodized (thickness ≥ 15μm) or powder coated to improve corrosion resistance and UV resistance, preventing outdoor oxidation and rust; In coastal high-salt-spray areas: Hard anodizing + anti-salt-spray coating is required to meet the requirement of ≥ 1000 hours of salt spray testing without rust.
Lightweight Design and Installation Compatibility
While meeting heat dissipation requirements, the aluminum profile wall thickness is optimized (generally 2-4mm) to reduce overall weight and facilitate streetlight pole installation.
Standardized mounting holes must be pre-drilled in the aluminum structural components to accommodate different streetlight pole sizes (e.g., Φ60, Φ76mm poles).
Module and Driver Power Supply Matching: A constant current driver power supply must be selected with an output current accuracy ≤±3% to avoid accelerated light decay of the LEDs due to current fluctuations.
Surge Protection Design: The module must integrate a surge protector with a protection level ≥10kV to address outdoor lightning strike risks.
Our Company Profile
Guoli Optoelectronics has more than 10 years experiences in PCB, PCBA design and manufacturing, especially in LED application, we have strong engineers team for software and hardware development, and with 50+ patents in PCB products. We have 4 manufacturing bases and 600+ staffs, strong production capacity and fast response to make sure your project run efficiently. We have thousands of successful customers and cases globally, and serving the brands in industry worldwide.
We have complete quality control system and management system to keep our product quality, including UL, Rohs, ISO9001, ISO14001 and IATF16949.
Our Advantages
1. Save Time and Costs: GUOLI provides PCB design, sourcing, assembly, testing, and after-sales services, reducing communication and delivery time with different suppliers, improving efficiency, and lowering costs.
2. Reduce Errors: PCB design and assembly defects can cause project delays. GUOLI's one-stop PCBA service reduces various errors, including design, sourcing, and assembly mistakes, thereby improving quality control.
3. Strong Technical Team: GUOLI's one-stop PCBA service is typically equipped with an experienced technical team to help customers solve various technical problems and ensure timely project completion.
4. Unified Warranty and After-Sales Service: GUOLI's one-stop PCBA service provides unified warranty and after-sales service, helping to build long-term partnerships and achieve mutual benefit.
5. Customized Services: GUOLI's one-stop PCBA service can provide more personalized services based on customers' specific needs and requirements, and develop suitable circuit boards and system components.
Application
Street lights, Commercial lights, Ourdoor big power lights.,etc.
Our Customers Reference
Our PCB Prodcution Site
Our PCBA Prodcution Site
Packing and Shiping
