Customizable High-Performance UV LED Solutions for Printing, Medical and Healthcare

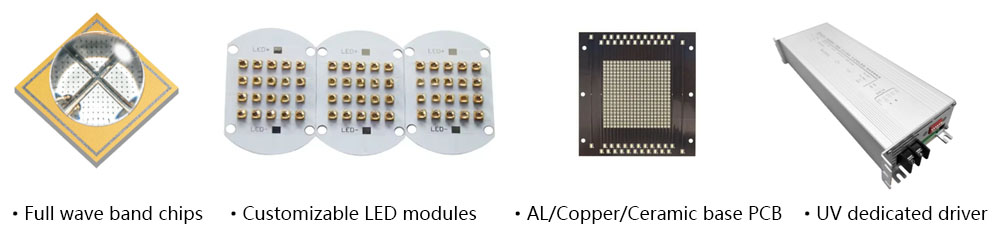

What we can do for different UV industries, and our parts for the UV LED Lights

Download Our Specifications

Name	Download
UV LED Module solutions.pdf	Download

Our solution features for Printing and industrial UV Curing

1.Extremely High Irradiance: The high-performance modules achieve light intensity exceeding 16-25 W/cm², meeting the instantaneous curing requirements of high-speed rotary printers (speeds up to 120-200 m/min).
2.Superior Thermal Management Design: Our aluminum nitride (AlN) ceramic and thermoelectric separation copper substrate possesses extremely high thermal conductivity, rapidly dissipating heat generated by the chip.The modules can be equipped with a precise internal circulating water cooling channel and can be configured with thermistors to output over-temperature alarm signals, controlling the junction temperature within an ideal range to prevent light decay. Lifespan typically reaches 20,000-50,000 hours.
3.Precise Secondary Optical Design: Equipped with special quartz lenses or total internal reflection lenses, the divergence angle is controlled within an extremely small range, ensuring that light maintains extremely high focus even 5-50 mm away from the module, reducing energy loss.
Multi-Wavelength: To resolve the conflict between surface curing (short wavelength, such as 365nm) and deep curing (long wavelength, such as 395/405nm) of ink, our modules often adopt a mixed-wavelength layout to ensure that thick ink layers and opaque inks (such as white ink and black ink) are completely dried.

4.Compared to traditional mercury lamps: It features a cold light source with extremely low infrared radiation, making it suitable for various printing materials. It is environmentally friendly, producing no mercury or ozone. It requires virtually no maintenance. It starts up quickly, lighting up instantly.

5.High performance LED chips: 365-405nm. Nichia chips or other economical brands are optional.

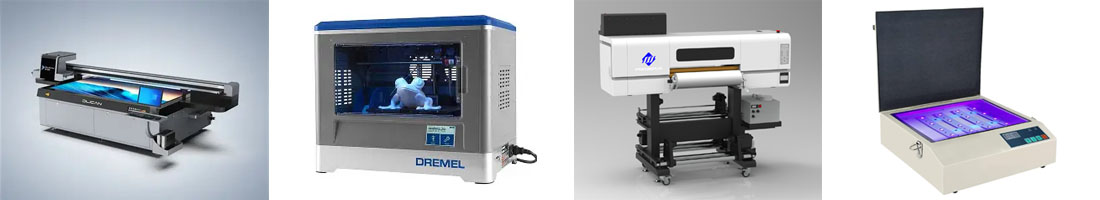

6.Applications: UV inkjet industrial printers, 3D printers, label printers, screen printing machines, pad printing machines, glue curing, exposure machines and so on. Suitable for various printing materials such as glass, metal, sheets, leather, acrylic, labels, adhesive tape, resin, etc.

Our solution features for Medical UV Sterilization and Disinfection

1. Medical modules typically operate in the UVC band (200-280nm), while our high-performance modules are precisely locked between 260nm and 280nm, rapidly destroying the DNA and RNA genetic material of pathogens.
2. A high thermal conductivity, high deep UV reflectivity aluminum nitride (AlN) ceramic substrate is used to prevent excessive junction temperature from causing light decay or wavelength drift.
3. A fully inorganic deep UV-specific package (such as a quartz glass lens with a gold-plated bracket) is used to ensure the module is not damaged by the high energy of UVC.
4. The power supply must provide an extremely stable constant current output, with fluctuations controlled within ±1%, ensuring a virus kill rate of over 99%.
5. The power supply integrates an interface to connect to a human infrared sensor (PIR) or a door magnetic switch. Once someone is detected entering the disinfection area, the power supply must cut off the output within milliseconds to prevent UV burns.

6. Applications: UV sterilamp, Hospital sterilization and disinfection machines

uv for Medical sterilization and disinfection

Our solution features for UV Healthcare and Beauty

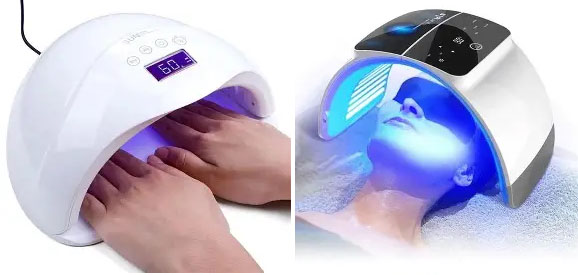

Nail machine

1. Dual-band mixing technology. We mix and arrange 365nm and 405nm wavelength LEDs on the same PCB. This ensures that all brands of gel polish dry completely without shrinkage.
2. Asymmetric optical array. Our modules are arranged in an arched or U-shape according to the physiological structure of the hand. The professionally designed LED placement eliminates blind spots for the thumb and sides of the nail.
3. Low heat generation and thermoelectric separation PCB. Using a high thermal conductivity aluminum substrate and optimized heat dissipation hole design, the operating temperature ensures it does not exceed 45°C-50°C, preventing burns.
4. High color rendering index/blue light protection. A small amount of visible light LEDs and specially encapsulated phosphors are added to avoid glaring deep blue or deep purple light, reducing eye fatigue for nail technicians.

Skin phototherapy machine

1.Extremely narrow peak wavelength control: High-performance modules are typically locked at 311-313nm. Narrow-band UVB maximizes treatment effectiveness while filtering out low-band UV rays that can cause skin erythema or burns.
2.Highly uniform array layout: To avoid skin hot spots.
3.Medical-grade thermal management : thermoelectrically separated copper substrates or aluminum nitride ceramic substrates to ensure a constant treatment wavelength.
4.Radiation-resistant materials: The PCB solder mask layer uses UV-resistant, high-reflectivity ceramic white ink or a physically deposited aluminum layer to prevent substrate aging and cracking under long-term exposure.

Why Choose Us?

1. One-stop electronic solutions for UV industry applications, from demand elicitation and matching design suggestions to sample provision and mass production to meet your needs.
2. Lifespan and stability: Light decay less than 10% after 50,000 hours.
3. Deep customization capabilities, supporting non-standard shapes, special spectra/voltages, multi-functional communication, and multi-channel control.
4. Rapid response service within 8 hours.
5. Certifications: UL, RoHS, REACH, ISO9001, ISO14001
6. Superior performance and reliability: Extremely high power density, high electro-optical conversion efficiency, wavelength purity and consistency, ultra-long lifespan, adaptability to extreme environments, and use of high-quality brand LED chips.
7. Core technology and process advantages: Advanced COB packaging technology, secondary optical design, intelligent power drive algorithm, and over 50 LED PCB technology patents.

8. We have 100% unit inspection, process:
Strictly Select Suppliers->IQC->IPQC->ICT->AOI TEST->X-ray Test->Function Test

About GUOLI Optoelectronics

We a national high-tech enterprise that integrates PCB manufacturing, PCBA solution research and development, production, and sales. Founded in 2013 and is headquartered in Foshan, China. We now has multiple/single layer PCB production base, and SMT production base.
With total area of over 80000 square meters and currently has more than 600 employees. The Foshan SMT base has 10 Yamaha and Samsung SMT production lines; The Zhongshan SMT base has 14 Yamaha SMT production lines.
We are engaged in designing and production of LED PCB module, professional in UV LED industry solutions. Supply for customers such as TOSHIBA, SAMSUNG, FOXCONN, OSRAM, FSL, HONEYWELL, XIAOMI, OPPLE and so on. Our products are widely exported to Europe, South America, North America, Middle East and East South Asia, more than 30 countries.

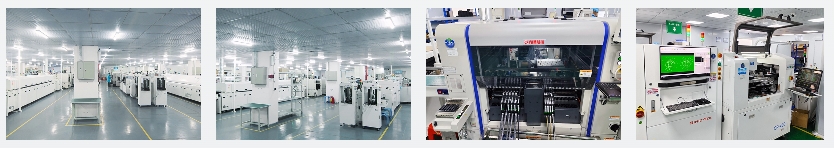

Our PCB and SMT production
