| Key Atributes | Values | Key Atributes | Values |
| Color Temperature | OSRAM all series color temp. products | Luminous Efficacy | Customized. We can design high luminous efficiency according to request |
| Width/Length | Customized | Warranty | 5 years |
| Brand Name | GUOLI / Customized | Emitting Color | Customized |
| Lens | Available | Water proof | Available option, We have process of applying waterproofing adhesive |
| Radiator | AL | CRI | OSRAM all series CRI |
| Certification | UL(CUL), IS09001&IS014001, IATF16949, REACH, RoHS | PCB surface process | OSP/HASL |
| Copper thickness | 0.5-3oz | PCB material | FR-4/Aluminum |
| Input | DC/AC | Light Source | LED |
| Support Dimmer | Available | Board Thickness | 0.2-4mm |
| DOB | Available | Service | One-stop turnkey service |
| LED CHIPS | OSRAM, QTY customized | Colour Accuracy Initially | Min. 3 SDCM |
| Power | Customized | ZHAGA | Available |
Product Features
* High Reliability and Long Lifespan
* High Luminous Efficacy and Energy Efficiency
* Accurate and Consistent Color
* Compact and Easy-to-Integrate Structure
* Strong Heat Dissipation Design

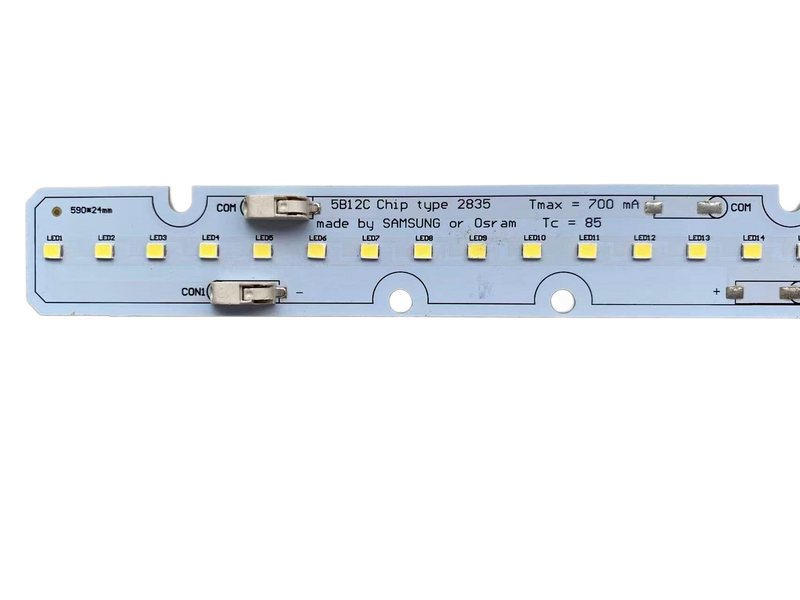

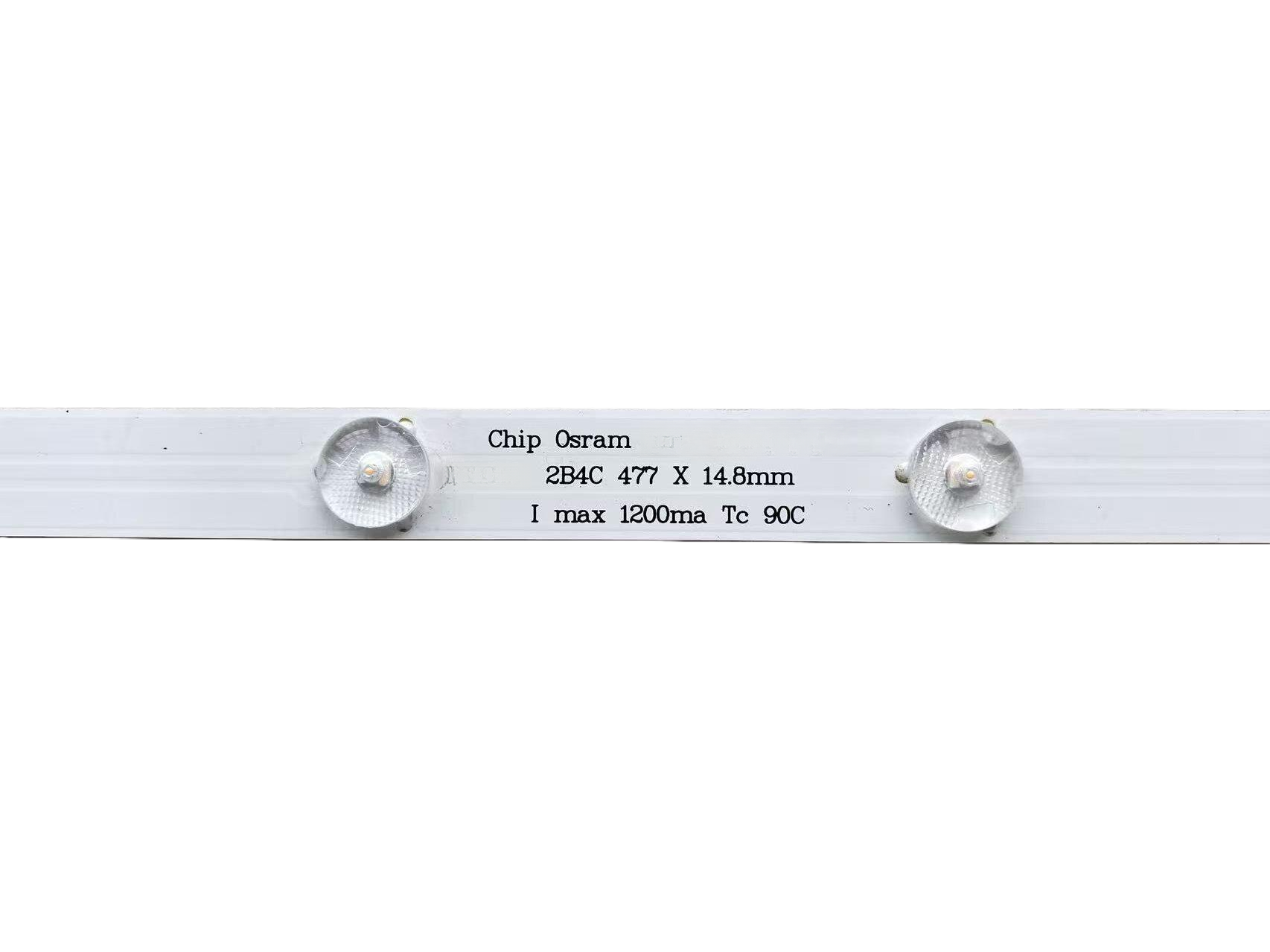

OSRAM LED PCB modules are renowned for their high reliability, high luminous efficacy, accurate color, and ease of integration. Suitable for various indoor and outdoor scenarios, their luminous efficacy, color temperature, and color rendering index (CRI) options cover general to professional needs, making them the preferred solution for commercial and industrial lighting.
I. Core Advantages
Advantages Specific Explanation
High Reliability and Long Lifespan
Excellent packaging and substrate thermal design; some series (such as PrevaLED) L80/B50 have a lifespan exceeding 50,000 hours; support a wide operating temperature range of -30℃ to 85℃; vibration and shock resistant; suitable for harsh environments.
High Luminous Efficacy and Energy Efficiency
Mainstream luminous efficacy 100-150 lm/W; high-end series (such as PrevaLED Linear OP) can reach 160 lm/W; PFC ≥ 0.9; low THD; meets Level 1 energy efficiency standards, resulting in significant energy savings.
Accurate and Consistent Color
CRI coverage of Ra 80/90/95+, a color temperature range of 2700K-6500K, multi-color zone bin control, color tolerance ≤3 SDCM, and uniform light spot, meeting the color reproduction requirements of commercial and professional lighting.
Compact and Easy-to-Integrate Structure
Standardized packages (e.g., 3030, 2835) are compatible with SMT, supporting integrated lamp and driver (PrevaLED series). It can be directly mounted on aluminum/ceramic substrates, facilitating installation and maintenance, and is suitable for ultra-thin luminaire designs.
Strong Heat Dissipation Design
Most models utilize metal substrates and thermally isolated pads, resulting in low thermal resistance. Some models have a small Z-axis tolerance (±35μm), which facilitates heat conduction and optical alignment, reducing light decay. Full-scene adaptability; supports dimmable (SCR/0-10V/DALI), Tunable White (2200K-6500K), protection rating up to IP66/IP68, suitable for complex scenarios such as indoor and outdoor environments, high temperature and high humidity OSRAM.
II. Selection of Luminous Efficacy, Color Temperature, and CRI
1. Luminous Efficacy Selection
Mainstream range: 100-150 lm/W; High-end series (such as PrevaLED Linear OP) up to 160 lm/W OSRAM.
Selection recommendations:
General commercial lighting (shops, offices): 100-120 lm/W, balancing cost and energy saving.
High ceilings, industrial plants, street lighting: 120-150 lm/W, prioritizing Level 1 energy efficiency.
Energy-saving renovation projects: 150 lm/W and above, matching international certifications such as DLC, for higher long-term returns.
Note: High-power modules require enhanced heat dissipation to prevent high temperatures from causing a decrease in luminous efficacy.
2. Color Temperature Selection
Standard range: 2700K (warm white), 3000K, 3500K, 4000K (neutral white), 5000K, 6500K (cool white); Adjustable color temperature versions cover 2200K-6500K OSRAM.
Selection Recommendations:
Home, Hotel, Restaurant: 2700K-3500K, creating a warm atmosphere.
Office, School, Hospital: 4000K-5000K, improving focus and work efficiency.
Industrial, Outdoor, High Ceiling: 5700K-6500K, enhancing visibility and safety.
Commercial Shop Windows, Showrooms: Tunable White is an option, adaptable to different display themes and time periods.
3. Color Rendering Index (CRI) Selection
Standard range: Ra 80 (general), Ra 90 (commercial), Ra 95+ (professional); High R9 OSRAM versions can be customized for special scenarios.
Selection Recommendations:
* **General Lighting (Corridors, Warehouses):** Ra 80, meets basic visual requirements.
* **Commercial Retail (Apparel, Jewelry), Hotels:** Ra 90, accurately reproduces product colors, enhancing texture.
* **Museums, Galleries, Medical Aesthetics:** Ra 95+, ensures accurate color judgment, meets professional lighting standards.
III. Main Application Scenarios
* **Application Scenarios:** Recommended Series & Parameters Core Value
* **Commercial Lighting (Shops, Supermarkets, Showrooms):** PrevaLED Core G7, BackLED Area White; Ra 90+, 3000K/4000K, 110-130 lm/W. Excellent color reproduction, uniform light spot, enhances product appeal, energy saving and consumption reduction (OSRAM).
* **Industrial and High Ceiling Lighting:** PrevaLED Linear OP, OSLON Compact; 130-160 lm/W, Ra 80+, 5000K/6500K. High brightness, long lifespan, adaptable to high-dust and high-temperature environments, reduces maintenance costs (OSRAM).
Outdoor & Signage: BackLED TW CP G5; IP66/IP68, adjustable 2700K-6500K, Ra 80+, strong weather resistance, suitable for light boxes, signs, and architectural outline lighting; dynamically adjustable color (OSRAM).
Home & Building: Duris E Series (2835/3030); Ra 90, 2700K-4000K, 100-120 lm/W; ultra-thin design, compatible with downlights and panel lights, comfortable light color, supports intelligent control (OSRAM).
Automotive Lighting: high brightness, high thermal conductivity, AEC-Q certified; compact size, excellent heat dissipation, meets the stringent requirements of headlights, daytime running lights, etc. (OSRAM).
Professional lighting (museums, medical): Custom Ra 95+, 2700K-5000K, low glare; high color accuracy, low flicker, restores the true colors of cultural relics/skin tones, protects visual health, and meets professional standards.
Application
Outdoor lights, Automotive lights, Indoor lights
Our Customers Reference
Our PCB Prodcution Site
Our PCBA Prodcution Site
